Six disciplines, one solution
WSCAD offers electrical CAD solutions tailored specifically to your design needs covering six disciplines – electrical engineering, panel building, piping and instrumentation diagrams (P&ID), fluid power, building automation and electrical installation. WSCAD ELECTRIX is our most powerful electrical CAD software yet. The software comes with a completely new design engine (editor) and embedded compatibility to standard formats like DXF/DWG. WSCAD ELECTRIX is based on modern technologies like augmented reality, multi-threading and automation, while still being intuitive to use.
Get the complete WSCAD ELECTRIX Ultimate demo, including all modules, and test it for free.
Electrical Engineering

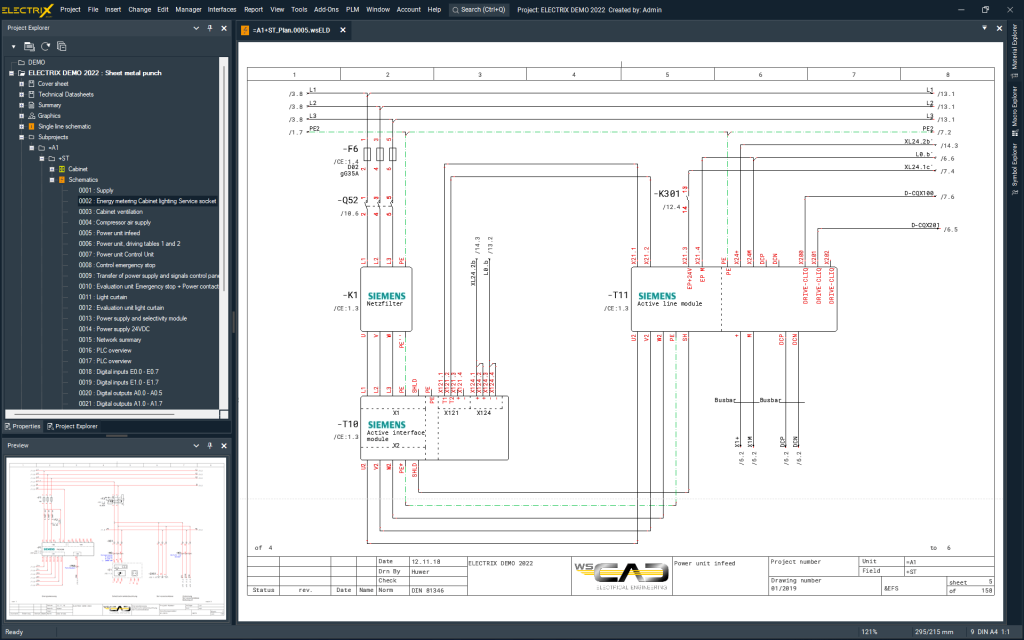

The Electrical Engineering discipline enables engineers and designers to plan, develop and document medium, low and extra-low voltage systems in mechanical engineering and in industrial and building automation. Read more…
Cabinet Engineering

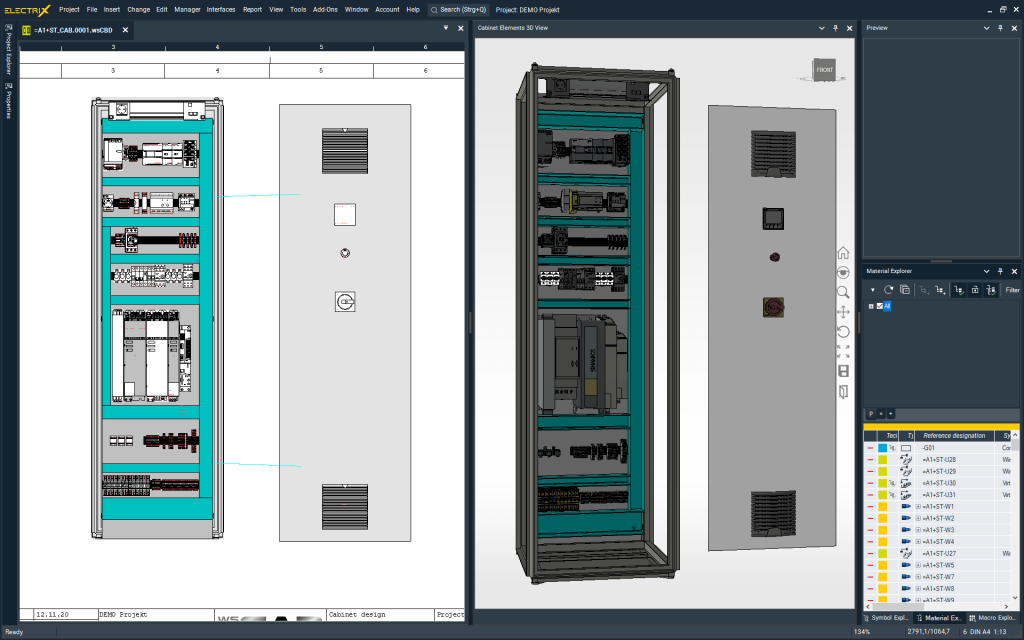

The Cabinet Engineering discipline provides a significant amount of support for the design and layout cabinets. for example, the exact and optimal placement of components, collision checks for objects and the calculation of wire lengths and wire routes already during the planning. Read more…
Electrical Installation
Designers and engineers involved in building system technology can rely on WSCAD Electrical Installation to design high and low voltage installations, as well as antenna and fire alarm systems. Read more…
Fluid Engineering

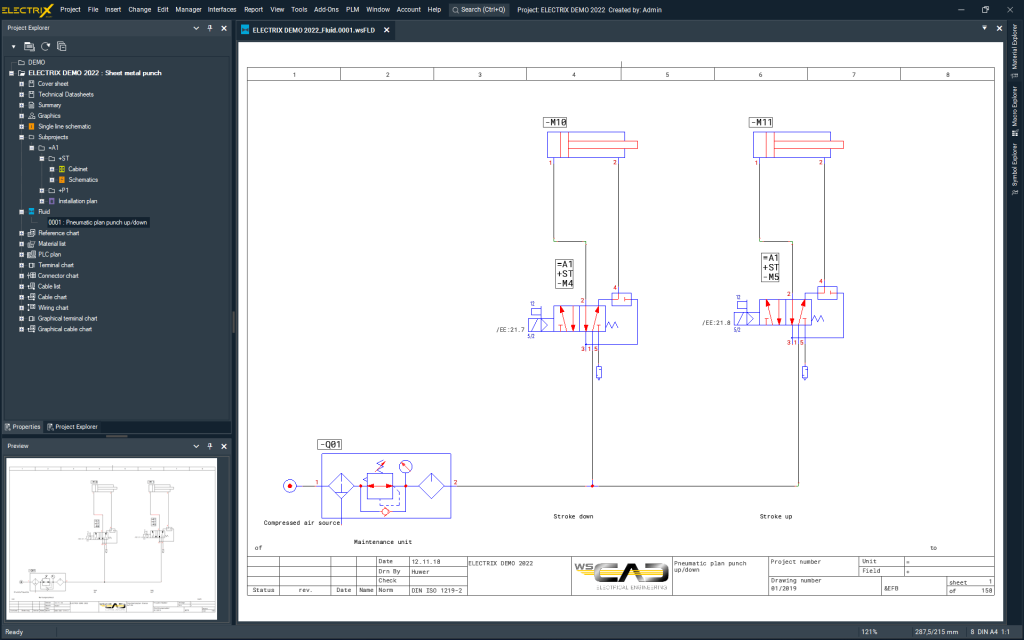

The planning and documentation of pneumatic and hydraulic machines and plants is performed with the aid of the Fluid Engineering discipline. Fluid Engineering includes all the benefits of the WSCAD Electrical Engineering software, supplemented by special fluid functions. Read more…
Piping & Instrumentation

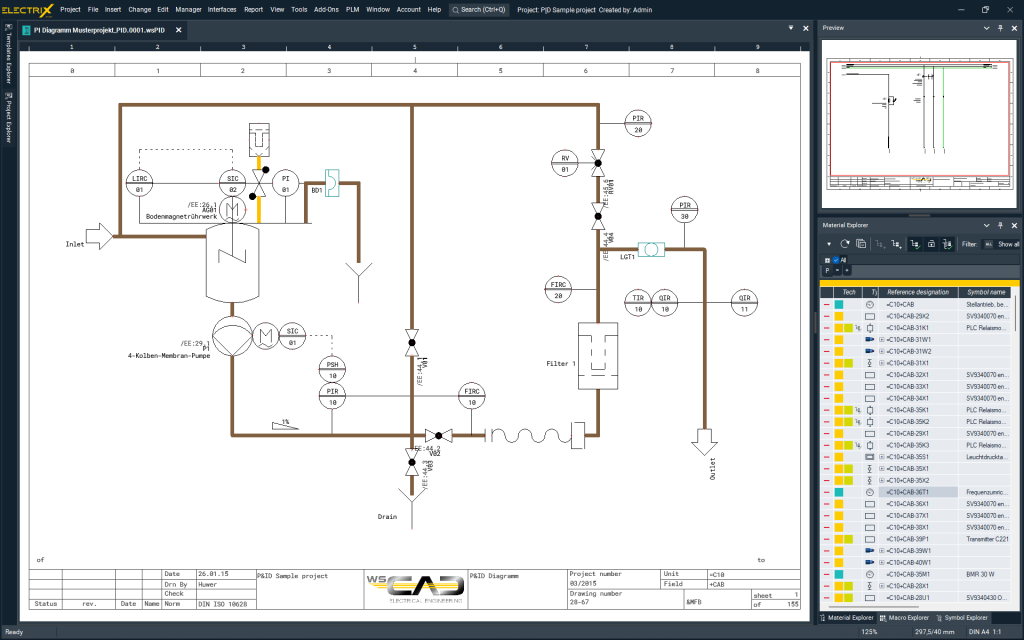

The P&ID (Piping & Instrumentation Diagrams) discipline enables process engineers and designers to easily create piping and instrumentation diagrams (P&ID). Thanks to the intelligent linking of measuring points and devices with the schematics and plans of other disciplines, their interactions can be presented logically and checked. Read more…
Building Automation

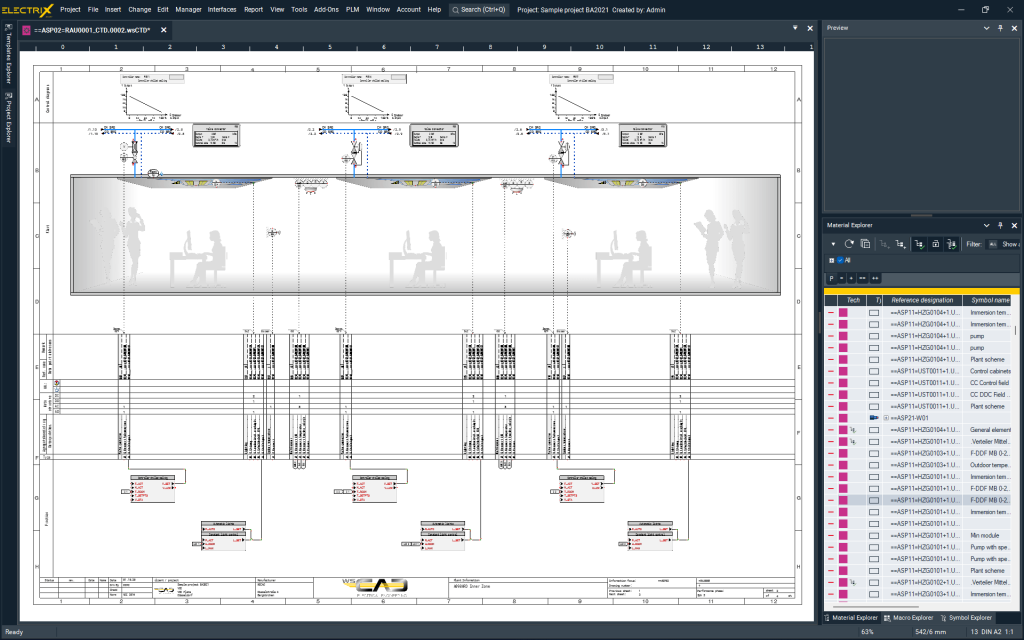

Plant layouts and control schemes are created using WSCAD Building Automation software. Function lists can be structured according to the guidelines VDI 3814 und VDI 3813 for the entire building automation. The symbols placed in the schematics are stored including the complete product data from the manufacturer. Read more…
Get your WSCAD ELECTRIX Ultimate free demo
The complete WSCAD ELECTRIX Ultimate!
Simply fill in the form and we will send you an e-mail with the download link of the WSCAD ELECTRIX demo version. If you have any questions, one of our employees will be glad to help you:
UK: +44 (0) 203 966 2446
Rest of the world: +49-8131-3627-400
Request a Demo
WSCAD ELECTRIX brochure
The new electrical CAD software from WSCAD – download the information brochure as PDF file.
Webinars on demand at any time
Discover WSCAD with our free webinars whenever and wherever you want!
In our media library you will find targeted solutions for building automation, electrical installation and much more. Learn how to efficiently implement electrical engineering with WSCAD ELECTRIX and substantially accelerate processes. Registration is required to view the webinars. Afterwards you will receive the link to the video by e-mail.
Also, don’t miss our events with our partners on specific topics of the electrical CAD industry. Upcoming events can be found at wscad.com/events.
